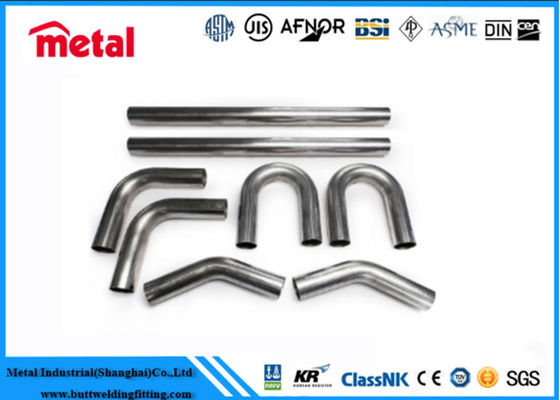

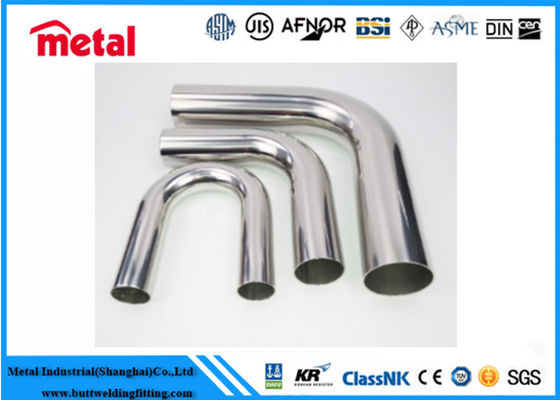

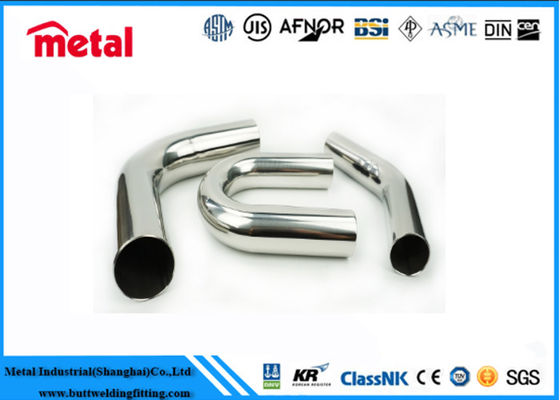

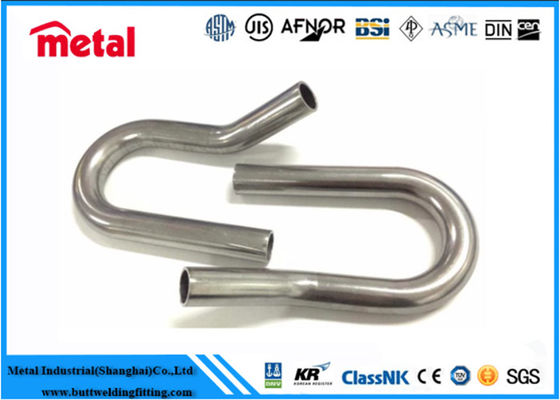

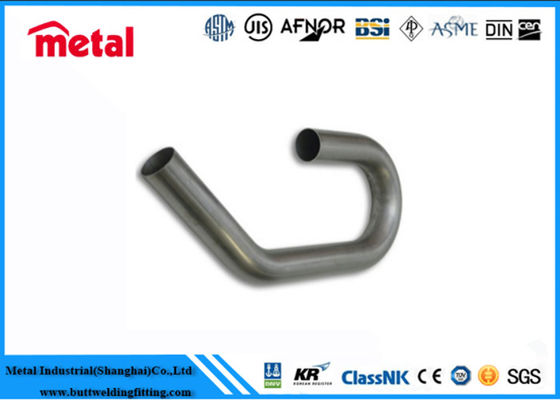

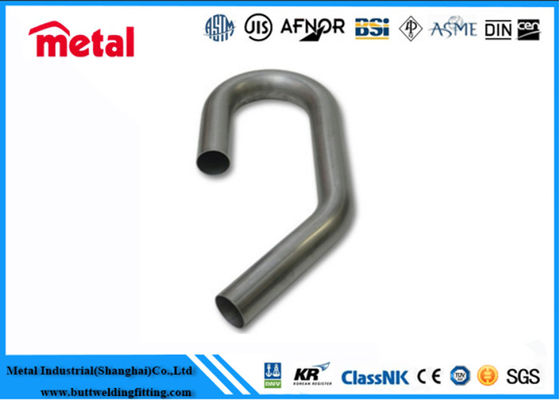

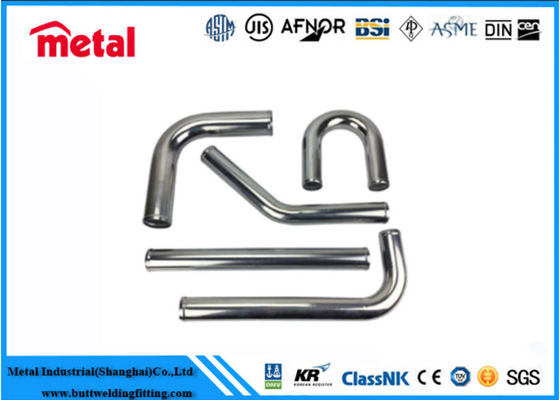

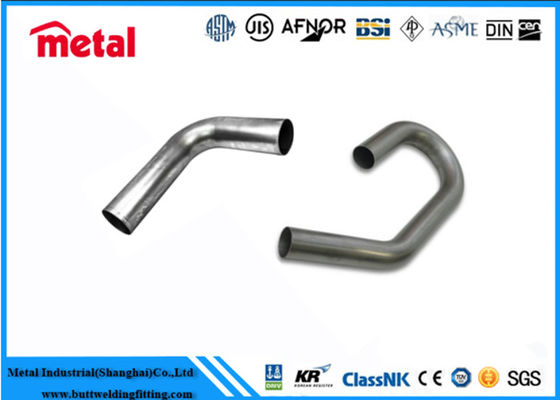

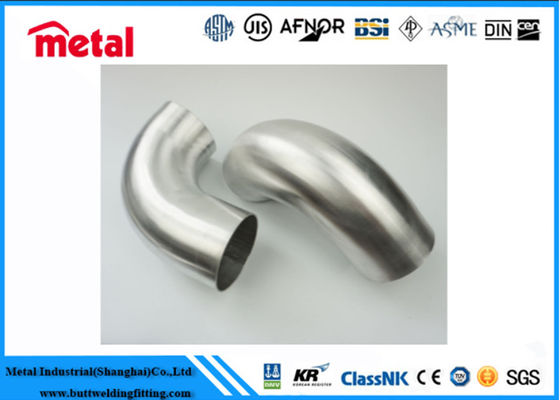

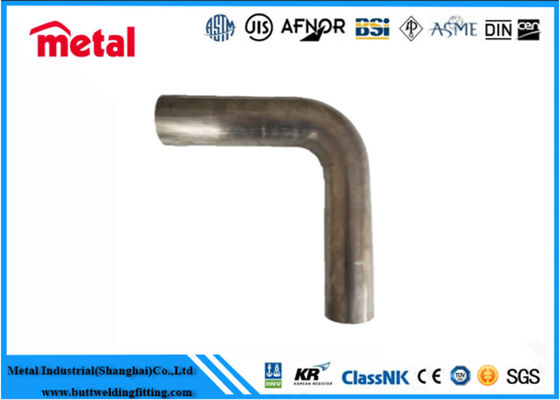

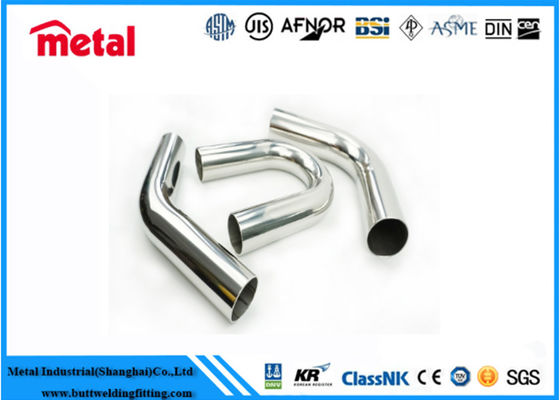

A/SA789 UNS S31803 U-Bent Tubes Duplex Stainless Steel for Heat Exchanger
Product Description
These U-bent tubes are manufactured in strict accordance with ASTM A789 / ASME SA789 standard, using UNS S31803 (2205) duplex stainless steel as raw material. They adopt professional cold bending and heat treatment process to ensure stable bending performance, uniform wall thickness, no cracks or deformation, and high dimensional accuracy.
S31803 duplex stainless steel integrates the advantages of austenitic and ferritic stainless steel, featuring high tensile strength, excellent toughness, and outstanding resistance to pitting corrosion, crevice corrosion and stress corrosion cracking. It has better corrosion resistance and mechanical properties than conventional stainless steel, suitable for long-term service in harsh working conditions.
The U-bent design effectively reduces welding points, improves the overall tightness and service life of heat exchange equipment. These U tubes are widely used in heat exchangers, condensers, boilers, pressure vessels and pipeline systems in petroleum, chemical, marine, desalination and power industries. Strict quality inspection ensures stable performance and reliable operation in high-standard heat transfer and pressure equipment.
| Priducts |
Dimensions |
Standards |
Materials |
Remarks |
| O.D |
W.T |
Length |
| U-bent Tubes for Heat Exchanger |
12.7-76.2mm
(1/2"-3") |
0.5-5.16mm
(0.02"-0.203") |
Leg Length: 15.24m(50')
Total Length: 32.00m(105)' |
ASTM/ASME A/SA213 |
T5, T11,T12, T22, T9, TP304/304L, TP304H, TP316/316L, TP347/347H, TP316Ti, TP321/321H, TP310S |
Seamless Ferritic and Austenitic Stainless Steel U-bent Tubes |
| ASTM/ASME A/SA249 |
TP304, TP304L, TP316, TP316L…… |
Welded Stainless Steel U-bent Tubes |
| ASTM/ASME A/SA789 |
UNS S31803/32205, UNS S32750…… |
Duplex Stainless Steel U-bent Tubes |
| ASTM/ASME A/SA163 |
Monel400, UNS N06600, 625, Incoloy800/800H, 825…… |
Seamless Nickel Alloy U-bent Tubes |
| ASTM/ASME A/SA268 |
TP405, TP409, TP410, TP430, TP439…… |
Ferritic and Martensitic Stainless Steel Seamless U-bent Tubes |
| Seamless and (Welded) Re-drawn Stainless Steel Feed Water Heater U-bent Tubes |
12.7-25.4mm
(1/2"-1") |
0.7-3.05mm
(0.028"-0.12") |
Leg Length: 15.24m(50')
Total Length: 32.00m(105)' |
ASTM/ASME A/SA668/213 ASTM/ASME A/SA803 |
TP304, TP304L, TP304LN TP316, TP316L, TP439 |
Low Pressure Feed Water Heater of Thermal Power Station |
Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L
Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6
Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750
Copper Nickel
C70600(90:10), C71500(70:30), C71640.
Nickel Alloy
Standard
· ASTM / ASME SB 336
· UNS 10276 (HASTELLOY C 276 )
· UNS 2200 (NICKEL 200 )
· UNS 2201 (NICKEL 201 )
· UNS 4400 (MONEL 400 )
· UNS 8020 (ALLOY 20 / 20) CB 3
· UNS 8825 INCONEL (825 )
· UNS 6600 (INCONEL 600 )
· UNS 6601 (INCONEL 601 )
· UNS 6625 (INCONEL 625 )
· UNS 5500(MONEL K500)
· UNS 8800(INCONEL 800)
· UNS 8810(INCONEL 800H)
Packing and Shipping
Package:Standard export carton packing.
Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to production season and order quantity.
1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm
4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis
U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm
U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request
